WarmCore®
Fold Doors
Warm, Secure and Beautiful
Aluminium Hybrid Fold Doors
Wide Span Doors
For Modern Living
No matter whether you‘re tucked up inside watching TV or hosting a garden party, WarmCore® Fold Doors will enhance the appearance of your home.
Depending on the opening configuration, the WarmCore® Fold Door can be configured to open inwards or outwards up to 6 metres, with up to seven opening sashes that glide along custom tracks. With numerous colour and configuration options, you will be making a great choice in choosing the WarmCore® Fold Door as an energy-efficient solution for your home.
The fitters friend
Ease of Installation
Performance and Durability
Quality Craftsmanship
Customer Satisfaction
Quick Turnaround
Security built in
Strong construction built for unparalleled security.
From the unique 5-point lock designed to run the full length of the door sash, to the high-strength hinges and rollers, each element of the WarmCore® door combines to ensure optimum security.
WarmCore’s aluminium-hybrid construction, custom-made roller assemblies – sitting deep within the top and bottom tracks – and extruded aluminium hinges make them inherently strong and secure. Added security features such as integral dog bolts bind the door sashes together when closed, protecting against forced entry.
A custom-designed door lock that isn’t available on any other door system. It uses a 5-point locking system with 3 opposed hook locks and twin shoot bolts – that engage fully into the aluminium top and bottom tracks – to keep you and your family safe and secure.
Every WarmCore® door is independently certified to PAS24:2022 the benchmark for enhanced security performance requirements for doors and windows in the UK. With the optional laminate glass upgrade, WarmCore® Fold Doors meet Secured by Design accreditations.
WarmCore® Thermal Performance

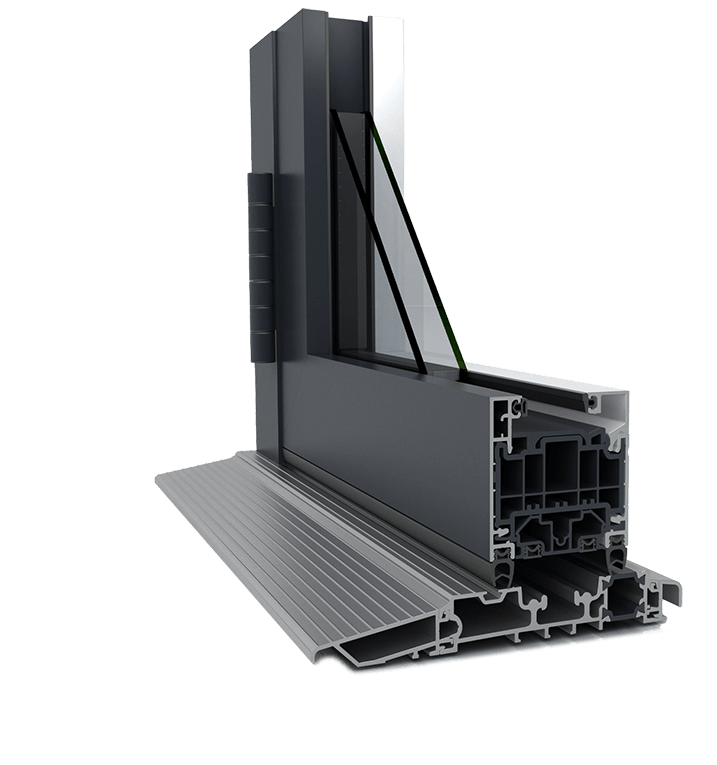

Built around a full-width thermal core, WarmCore® maximises the use of the lowest conductivity material, ensuring it is more energy efficient at keeping heat in your home.
Double Glazing
1.3w/(m²K)
Triple Glazing
0.9w/(m²K)
Revolutionising Energy Efficiency
Whilst a beautifully strong and hard-wearing material, aluminium windows and doors allow heat to escape easily to the outside leaving you cold, with higher heating bills. Most aluminium systems try to overcome this inherent weakness by replacing a section of the aluminium with a small thermal break of less conductive material to lessen heat loss.
WarmCore® took a different approach from the start, revolutionising the window and door industry by creating a system designed to be as thermally efficient as possible although not compromising on its strength. The outer face of the profile is manufactured from high-grade aluminium, positioned to add add excellent structural rigidity.
Guaranteed Peace of Mind
WarmCore® comes with a 10 Year Product Guarantee
Find your
perfect finish
Available as standard in a choice of powder coated colours and stunning laminated grained finishes, WarmCore® also allows you to pick a different colour for each side of your Fold Door. Want a colour outside with white inside to leave you free to change your interior in the future? – with WarmCore® that’s no problem.
Two Colour Finishes to Choose From
Anthracite Grey
Cream
Lavendar Haze
Telegrey 4
Telegrey 2
Dusty Grey
Slate Grey
Black
Deep Saxe Blue
Light Admiralty Grey
Pebble Grey
White
Smoke Grey
Antelope
Irish Oak
White
Chartwell Green
Golden Oak
Cream White
Achat/Agate Grey
Rosewood
Anthracite Grey
Black Brown
High Grade
WarmCore® Handles
Our range of WarmCore® Fold door handles combines functionality, style, and durability to enhance the aesthetics and performance of your living spaces. A high-security lever handle is also available, tested to PAS24 standards like the rest of the range.
Available in Silver, Black and Brushed Graphite.
Silver
Black
Brushed Graphite
Threshold options
Outer frame

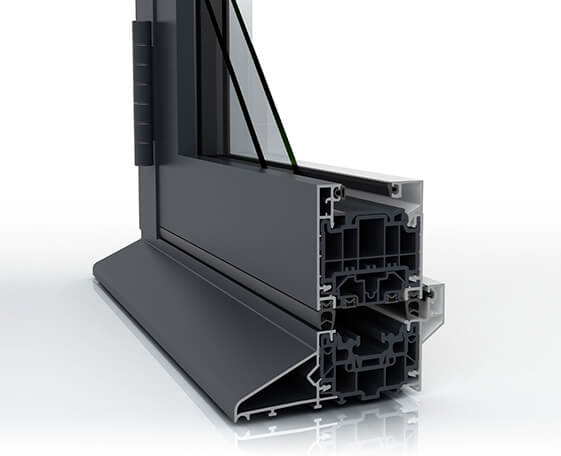

120mm integrated sill

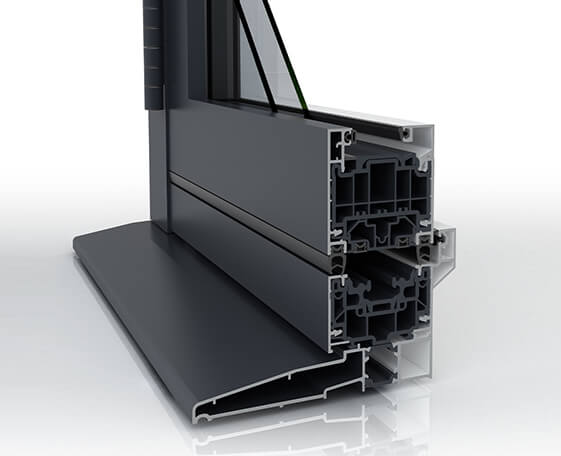

150mm sill

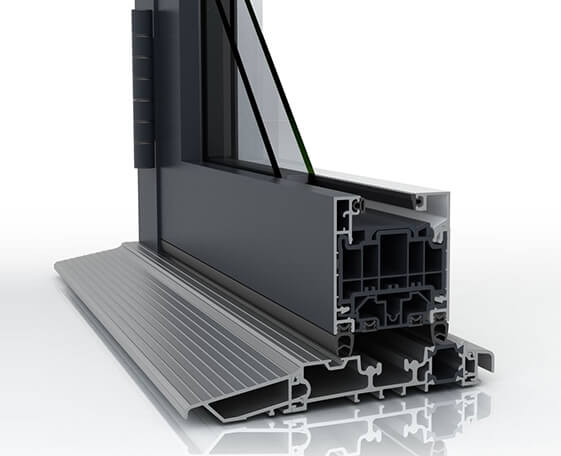

Low threshold (Part M)
WarmCore®
Attention to detail
From the sturdy quad-wheeled rollers, to the multiple weather-seals, every element of your door is precisely manufactured and installed to exacting standards. Performance, reliability and ease of use comes from a meticulous attention to detail.
Min/Max
- Max door width: 6000mm
- Max door height: 2400mm
- Max sash width: 1000mm
Sightlines
- Frame and sash sightline: 129mm
- Low threshold and sash sightline: 109mm
- Sash to sash sightline: 156mm
Load
Custom high-strength
rollers with a 200kg
load capacity
Tested
Sturdy quad-wheeled
rollers tested to over
50,000 cycles
Discover more on each and every product from WarmCore®
Download a WarmCore® Guide
